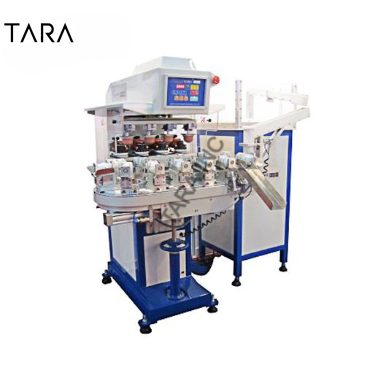

HA-200G-4 Fully Automatic Sealed Ink Cup Four Colors Golf Pad Printing Machine

The auto 4 color sealed ink cup pad printer is an automatically high-speed pad printing equipment for golf. It can complete one to four color printing of single product at a time.

Machine Features:

Fully automatic loading and unloading equipment for golf balls;

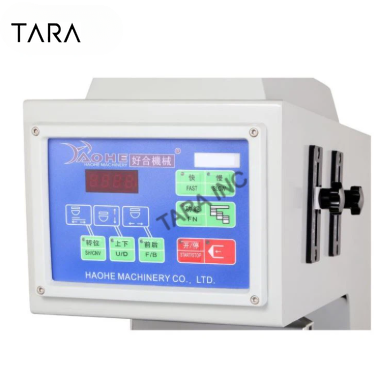

Microprocessor operation system, pneumatic control;

200mm standard stroke, ink cup design;

Available for 1 to 4 color printing, 14 stations conveyor;

Independent adjustment of up and down, forward and rear stroke;

Versatile X, Y printing pad adjustment;

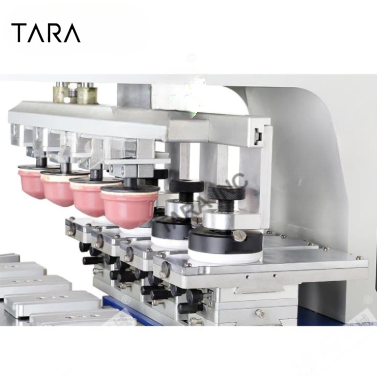

Ink cup base with X, Y, Z adjustment;

Using SMC pneumatic components.

Machine Specification:

Model NO.: HA-200G-4

Ink System: Ink Cup

Ink Cup Size: ID82xOD90 mm

Plate size: 200x100 mm

Printing Capacity: 1200 pcs/hr

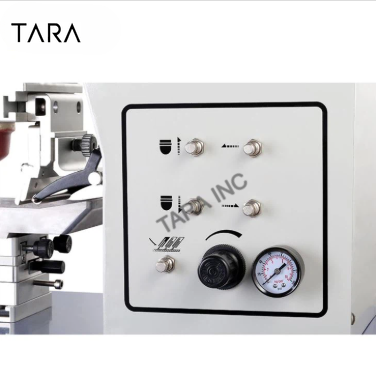

Air Requirement: 5 bar

Weight: 300 kg

Voltage: 110V/220V/230V 50/60Hz

Machine Dimension: 1100x950x1450 mm

Maintenance:

1. Carry out daily maintenance every day to keep the machine clean.

2. Wipe the activity part every week and add lubricant.

3. After printing, the rubber head, steel plate and inkwell shall be cleaned.

4. Check each operation button, limit switch, signal lamp and the sensor once a month. If damaged, replace or repair immediately.

5. Check the stability of the machine seat once a month.

6. Check the controlled system once a month.

...
