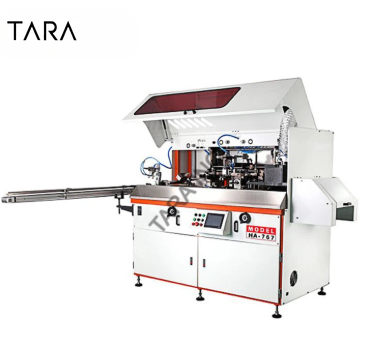

HA- 767-1C One Color Automatic UV Container Screen Printing Machine

The HA- 767-1C is a one color automatic silk screen printing machine with an automatic UV container. This screen printer machine is characterized by equipped with a DC motor controlled liner walking beam system with print capacity up to 4200 bottles per hour.

The HA- 767-1C UV screen printer is specially designed to print cylinder and square bottles, such as cosmetic bottle, plastic cup, silicone tube, etc..

Machine Features:

Equipped with an automatic UV container, high intensity UV lamp curing system;

Printing speed up to 70 bottles per minute;

Prints on cylinder and square containers;

Mechanical walking beam indexed;

Microprocessor PLC program controller with easy touch screen operation control system;

Famous brand electrical components.

Machine Specification:

Model NO.: HA-767-1C

Drive System: Mechanical driven

Round Container Size: Diameter: Ø10- 100mm, Height: 30- 260mm

Round Container Max. Print Area: L260x W220mm

Oval Container Size: R: 10- 250mm, Height: 30- 260mm

Oval Container Max. Print Area: L120x W220mm

Printing Capacity: 4200pcs/hr

Weight: 1600 kg

Voltage: 380V/ 480V 50/60Hz 5KW

Machine Dimension: 2300x1800x1700mm

Shipping:

1. Nearby areas can be installed and debugged door to door.

2. For specific delivery, please contact the factory.

3. Please contact factory for transportation damage. The factory will replace the damage parts in time.

...
