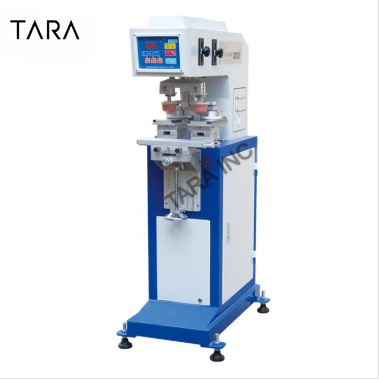

HSC-125D-2 Easy Sealed Ink Cup Single Color Pad Printing Machine With Two Pads

Machine Introduction and Features:

The pad printer is a single color sealed cup pad printer with two pad head ideal for printing on items that require an extended forward stroke.

It has separate adjustment of the pad up/down stroke speed.

This pad printing machine is suitable for single color small image printing, higher output than the one color with one pad machine, widely applied in many industries including electrical appliances, electronic, stationery, toys, plastic, gift, etc.

Machine Specifications:

Model No.: HSS-125D-2

Ink System: Sealed Ink Cup

Plate Size: 250×100 mm

Ink Cup Size: ID82xOD90mm

Max. Printing Speed: 2600 pcs/hr

Air Requirement: 5-6 bar

Machine Dimension: 680×460×1310 mm

Weight: 75 KG

Voltage: 110V/220V/230V 50/60Hz

Notes For Use:

Pay attention to the choice of pad printing head: pad printing head hardness can be divided into a variety of hard and soft options. The fine pattern choice a harder one and uneven printing pieces should use soft rubber head.

The ink must be stirred before injected into the ink cup.

The Jig should be prefabricated according the size of the printed products.

When the operation is suspended, press the “blank run” button to allow the scraping system to continue to work to prevent ink drying.

...
