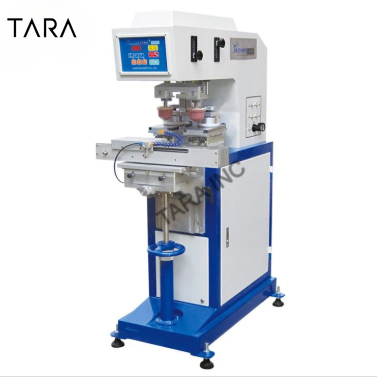

HLC-250D-S Manual 2 Color Sealed Ink Cup Pad Printing Machine with Shuttle Worktable

HLC-250D-S is a two color pad printer with pad slide equipped with duel position pneumatic pad-slide mechanism. This two color pad printer has been one of our best sellers for 1 to 2 color printing of plastic parts, promotional products, medical and electronic devices. Suitable for most small to moderately sized parts, this pad printing machine excels in the promotional product, electronic and medical industries.

Machine Features:

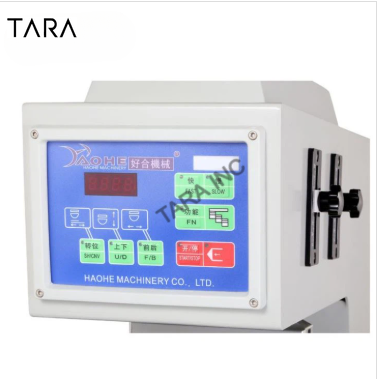

Controlled by microprocessor, easy operation, running stably and accurately;

250mm standard machine stroke, ink cup design;

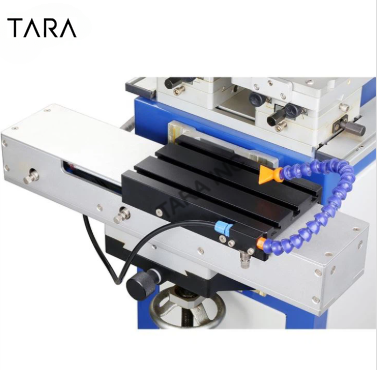

Comes with a solid built welded steel machine base and has adjustable floor levelers and a height adjustable work table;

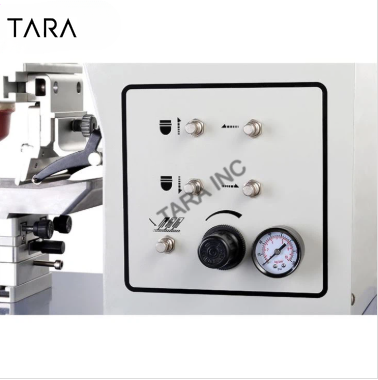

Separate adjustment of the pad up/down stroke speed;

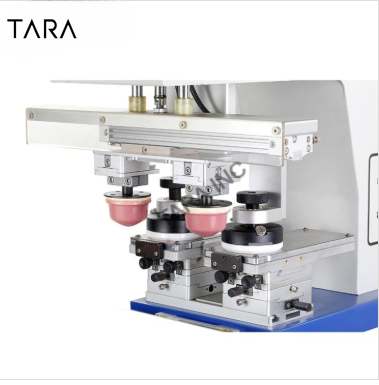

Ink cup is turnable and adjustable in vertical and horizontal direction.

Machine Specifications:

Model No.: HLC-250D-S

Control System: 12V PCB board

Drive: Pneumatic

Ink System: Sealed Ink Cup

Ink Cup Size: ID82xOD90 mm

Plate Size: 350×100 mm

Max. Printing Speed: 1500 pcs/hr

Air Requirement: 5-6 bar

Machine Dimension: 780×500×1350 mm

Weight: 95 KG

Voltage: 110V/220V/230V 60/50Hz

Buyer Information:

Before purchasing the printer machine, the buyer should carefully read the specifications of this two color pad printing machine and confirm whether the machine is suitable for use, or contact the factory for the detail description.

...
